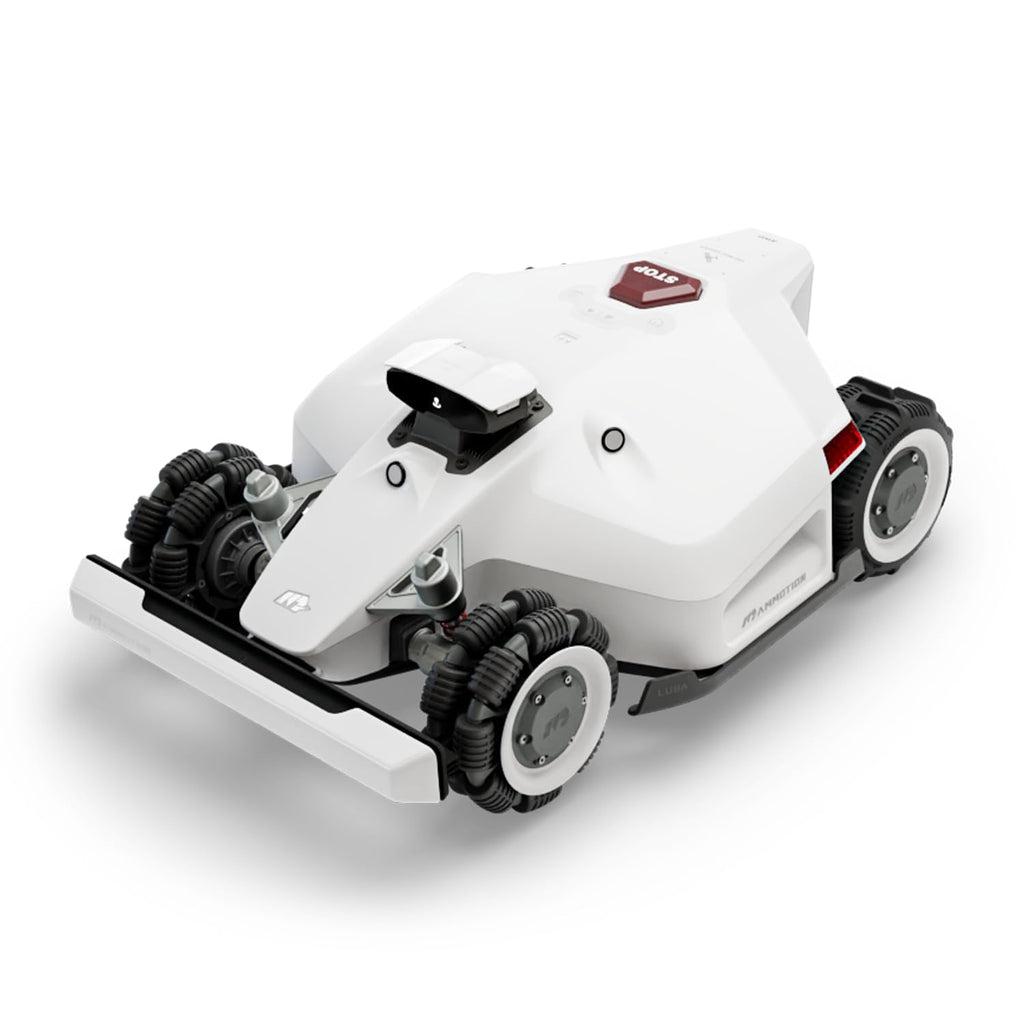

Mammotion LUBA 2 AWD Robot Lawn Mower

Mammotion LUBA 2 AWD Robot Lawn Mower

LUBA 2 AWD from Mammotion is the industry-leading Robot Lawn Mower fitted with the powerful 165W ultra-powerful cutting disc motor and perimeter wire free, LUBA 2 AWD comes in variants of 3000X for a 0.75 acre, 5000X for a 1.25 acre and 10000X for a 2.5 acre of sprawling lawn.

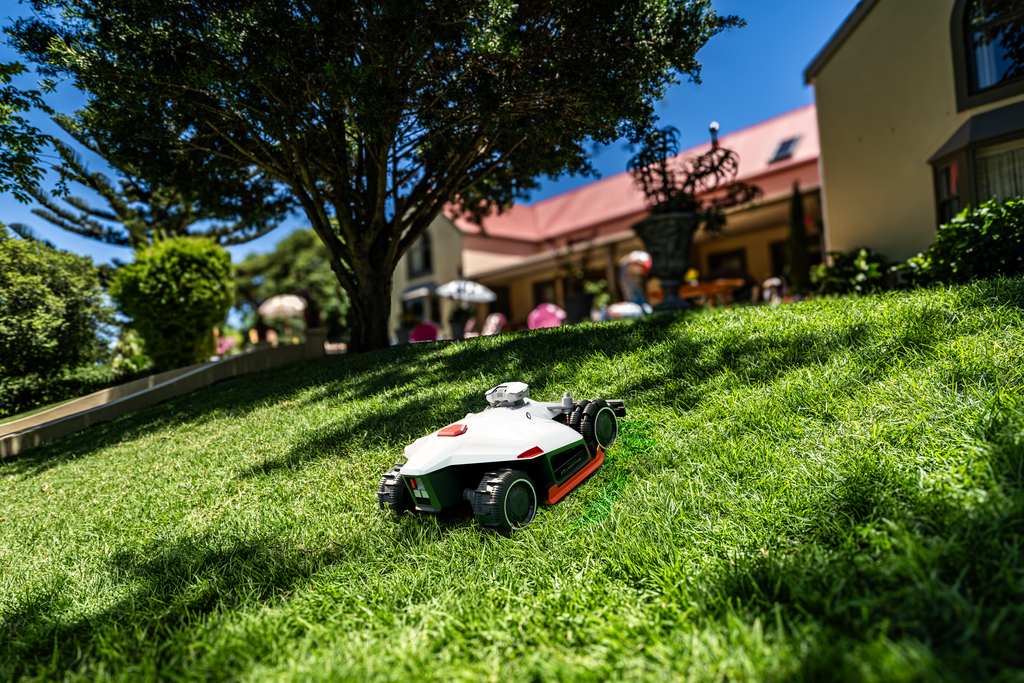

ALL WHEEL DRIVE

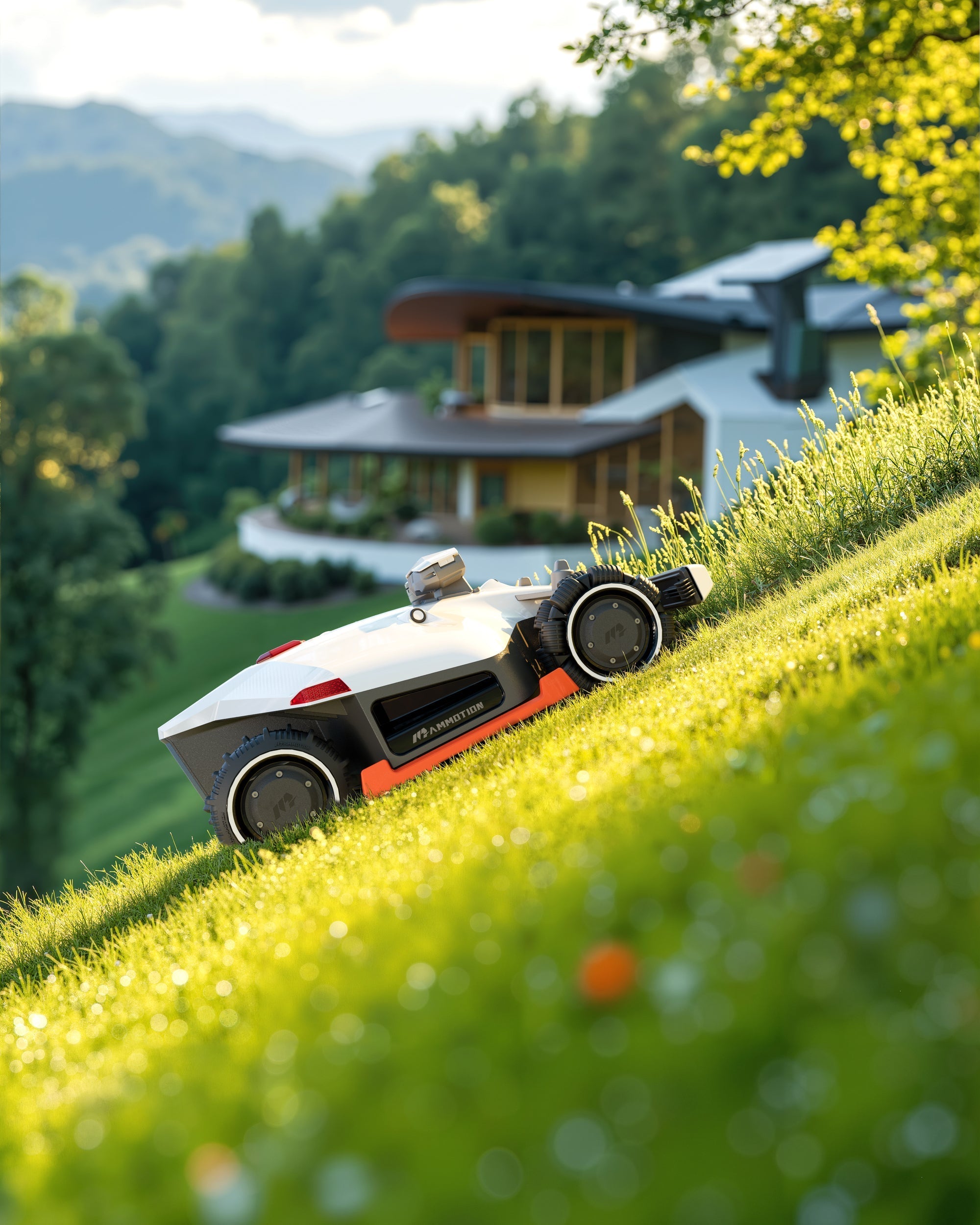

The perimeter wire free LUBA 2 AWD scales 38.6 degree slopes (80%) and steers clear of vertical obstacles up to 80mm, easily cruising over small pits and stones.

AUTO EDGE MAPPING

LUBA can automatically detect lawn boundaries with its edge mapping tech to create virtual maps up to 5,000㎡ in one day.

NO ANTENNA

With no antenna to restrict its movement, Mammotion LUBA conquers weather anomalies with ease at centimeter-level accuracy.

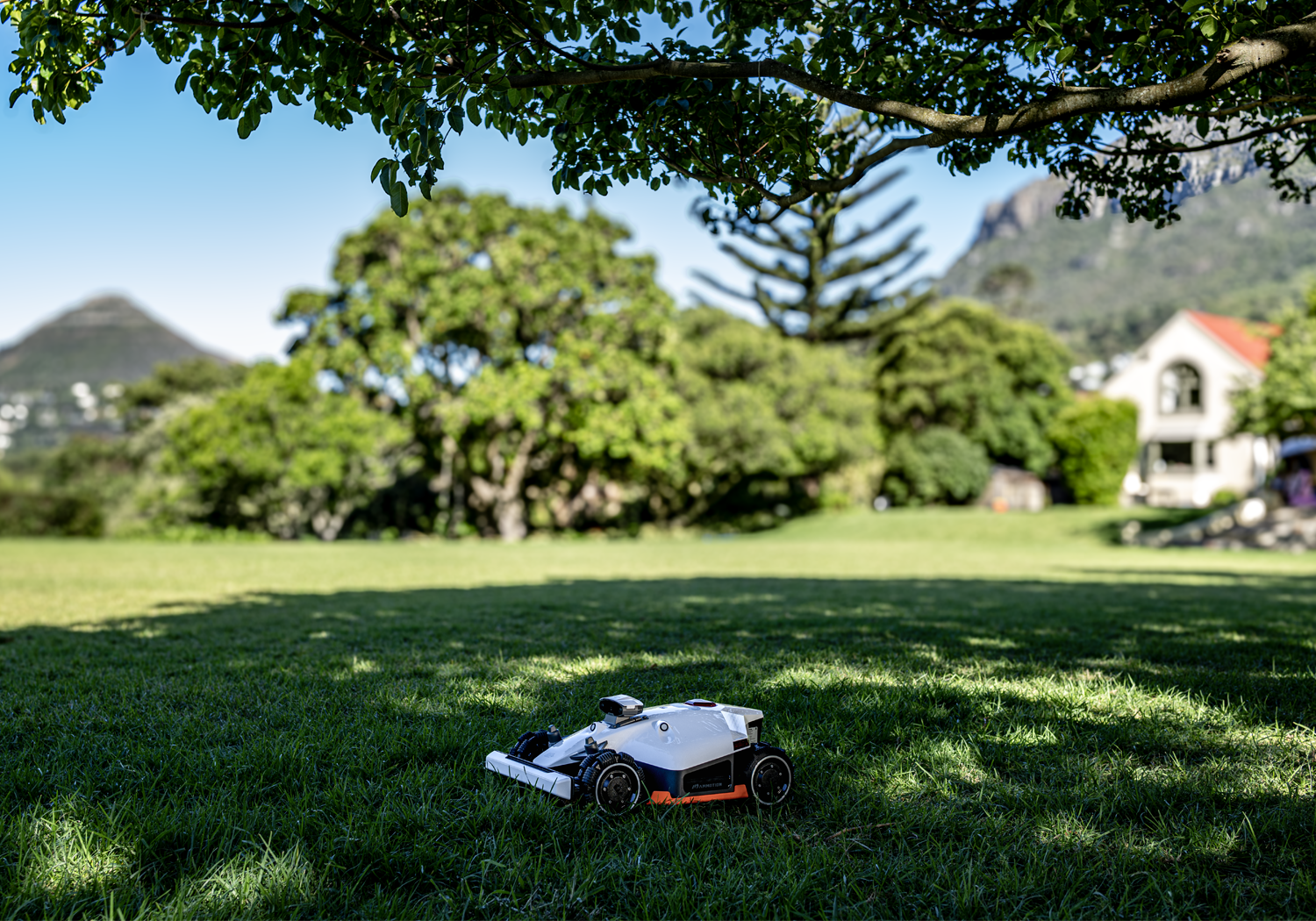

MOW UNDER TREE

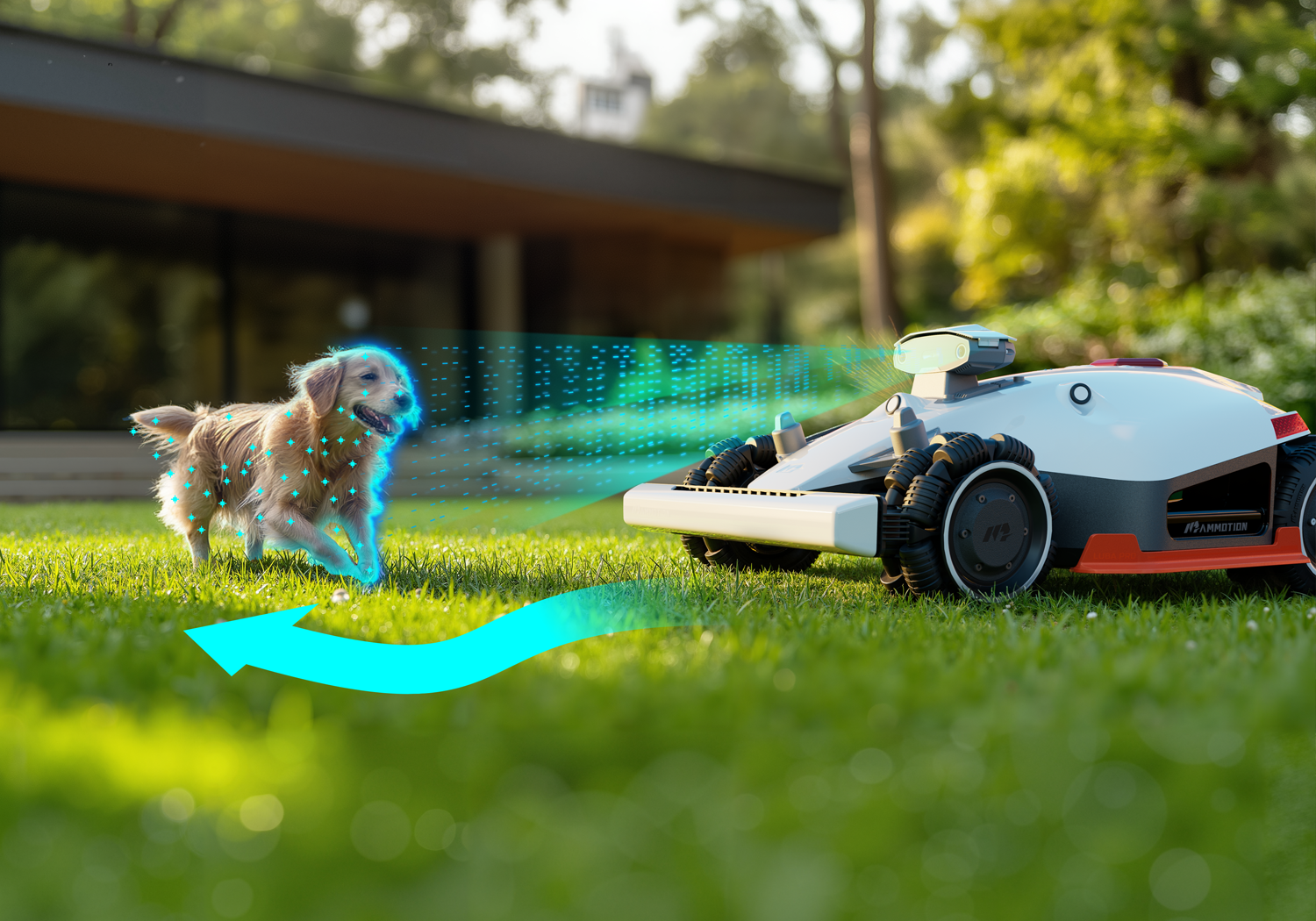

Mammotion LUBA's UltraSense AI vision can identify grass and non-grass surfaces, steer clear of restricted zones and accurately mow lawn even under dense trees up to 300 meters without relying on satellite signals. LUBA's superior AI algorithm can cleverly maneuver its way ahead without disturbing your children or pets playing in the lawn.

400MM DUAL DISC CUTTING SYSTEM

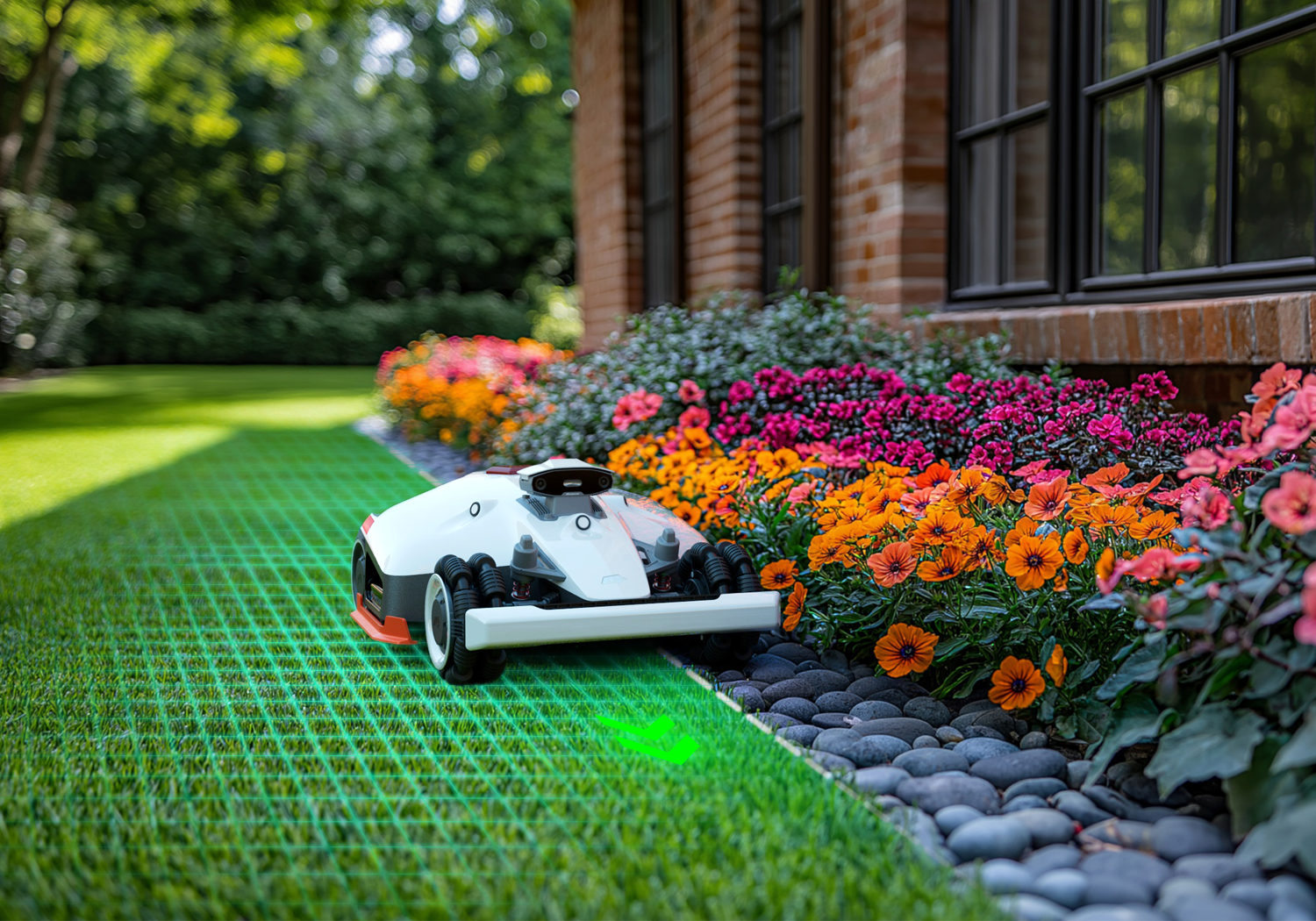

LUBA gets real close to your walls tending to the lawn with a precision of less than 5cm typically a ride-on, zero-distance, edge cutting, engineered to landscape the most unusual of lawns to perfection.

MANAGE UP TO 60 MOWING ZONES

From neatly manicured front lawns to fruit bearing backyards and road sides, a single button can restore all your mowing zones including the no-go zones like pools and flower beds. LUBA 2 AWD 10000X can handle up to 60 mowing zones.

INTELLINGENT ROUTE

LUBA 2 AWD with its precise positioning system always follows the optimal mowing path to keep your lawn well manicured with neat stripes, a treat to your eyes.

Highlights:

• Up to 5000㎡in one day
• Max. area of 1500㎡ per charge
• Powerful 15Ah Lithium battery - shorter charge time, longer runtime
• 400mm dual cutting disc ensures lawn evenness
• Storage of up to 60 mowing zones
• Set schedules, adjust mowing height and control mowing speed via app
• Ultimate theft prevention with GPS tracking, ownership authentication and app notification
• 5 Tops AI chip capable of 5 trillion operations per sec.

Specifications		Standard  Version			H  Version
Catagory	Item	LUBA 2 AWD 3000X	LUBA 2 AWD 5000X	LUBA 2 AWD 10000X	LUBA 2 AWD 3000HX	LUBA 2 AWD 5000HX	LUBA 2 AWD 10000HX
Capability	Lawn Size	3000㎡: 0.75 Acres	5000㎡: 1.25 Acres	10000㎡: 2.5 Acres	3000㎡: 0.75 Acres	5000㎡: 1.25 Acres	10000㎡: 2.5 Acres
	Max. Multi-zone Management	20	30	60	20	30	60
	Max. Climbing Ability	80% (38°)	80% (38°)	80% (38°)	80% (38°)	80% (38°)	80% (38°)
	Engine	4 wheel-drive	4 wheel-drive	4 wheel-drive	4 wheel-drive	4 wheel-drive	4 wheel-drive
	Vertical Passing Ability	5cm: 2"	5cm: 2"	5cm: 2"	8cm: 3"	8cm: 3"	8cm: 3"
	Boundary type	Cm level virtual boundary Vision GeoFence	Cm level virtual boundary Vision GeoFence	Cm level virtual boundary Vision GeoFence	Cm level virtual boundary Vision GeoFence	Cm level virtual boundary Vision GeoFence	Cm level virtual boundary Vision GeoFence
Weight/Size	LUBA Size (l*w*h)	27*20*11 Inches	27*20*11 Inches	27*20*11 Inches	27*20*12 Inches	27*20*12 Inches	27*20*12 Inches
	LUBA Weight	41 Lbs	41 Lbs	42 Lbs	42 Lbs	42 Lbs	43 Lbs
	Package Weight	65 Lbs	65 Lbs	66 Lbs	67 Lbs	67 Lbs	68 Lbs
Cutting System	Cutting Width	400mm: 15.8"	400mm: 15.8"	400mm: 15.8"	400mm: 15.8"	400mm: 15.8"	400mm: 15.8"
	Cutting height adjustment	Automatic	Automatic	Automatic	Automatic	Automatic	Automatic
	Cutting Disc	2	2	2	2	2	2
	Cutting system	6 pivoting razor blades on each disc	6 pivoting razor blades on each disc	6 pivoting razor blades on each disc	6 pivoting razor blades on each disc	6 pivoting razor blades on each disc	6 pivoting razor blades on each disc
	Cutting height	25 - 70 mm: 1-2.8 Inches	25 - 70 mm: 1-2.8 Inches	25 - 70 mm: 1-2.8 Inches	55 - 100mm: 2.2-4 Inches	55 - 100mm: 2.2-4 Inches	55 - 100mm: 2.2-4 Inches
	Cutter motor power	165w	165w	165w	165w	165w	165w
Battery	Battery Type	Li-Ion	Li-Ion	Li-Ion	Li-Ion	Li-Ion	Li-Ion
	Voltage	21.6v	21.6v	21.6v	21.6v	21.6v	21.6v
	Battery capacity	12Ah/259.2Wh	12Ah/259.2Wh	15Ah/324Wh	12Ah/259.2Wh	12Ah/259.2Wh	15Ah/324Wh
	Number of cells	6S4P	6S5P	6S5P	6S4P	6S4P	6S5P
	Is the battery replaceable?	No	No	No	No	No	No
Efficiency	Efficiency (Mowing area per hour)	550㎡/h: 0.14 Acres/h	600㎡/h: 0.15 Acres/h	650㎡/h: 0.16 Acres/h	550㎡/h: 0.14 Acres/h	600㎡/h: 0.15 Acres/h	650㎡/h: 0.16 Acres/h
	Charging Time	130min	130min	160min	130min	130min	160min
	Mowing time per Charge	210min	210min	260min	210min	210min	260min
	Maximum Mowing Speed	0.6m/s: 2 f/h	0.8m/s: 2.6 f/h	1.0m/s: 3.28 f/h	0.6m/s: 2 f/h	0.8m/s: 2.6 f/h	1.0m/s: 3.28 f/h

What's in the Box:

1 x LUBA 2 AWD

1 x Extra One Set of Blades

1 x Charging Station

1 x Charging Station Power Supply

1 x RTK Reference Station

1 x RTK Antenna

1 x RTK Power Supply

1 x RTK Extension Cable (10m)

1 x Ground Pile

1 x User Manual
